iOS Enter/Return Solution idChamp® RS4x

iOS Enter/Return Solution - Cursor Focus Fails To Move After Post

You’re using an RFID-NFC-Barcode reader on iOS that sends [ENTER] or [RETURN] character and after the scan. The scanner/reader you use connects to iOS in wireless keyboard mode. However, you find the focus does NOT move to the next field or next line after the scan. This post shows the iOS Enter/Return Solution for the idChamp RS4x RFID-NFC Reader-Writer. This solution may work for other scanners also.

The core reason that your cursor fails to move after your barcode or RFID reader data is posted to iOS is based on iOS design. iOS is specifically designed NOT to accept any Enter/Return character after your data is posted. It seems the iOS designers wanted to insure use taps something after the data is posted.

Advance The Cursor Focus To Next Field iOS Enter/Return Solution For Browser Apps

You can’t get iOS browser to advance the cursor/field focus after the scan is posted using enter/return character from the scanner.

When you’re using a webapp, you can use iScanBrowser Web Form Rules (WFR) technology to perform the Enter/Submit function after the  RFID/NFC/Barcode scan. iScanBrowser gives you the iOS Enter/Return Solution.

You use WFR to summit data after the RFID-barcode scan on virtually every type of web page for webapps running from a browser.

Native App Submits Data After RFID/NFC/Barcode Scan

You can’t iOS to inherently submit the RFID/NFC/Barcode scan in your native iOS app. This means your iOS app won’t do what you would expect from the ‘Enter/Return’ action character in the scan. As you would expect using a PC for example. Note you don’t have this issue when you use a scanner like the idChamp® RS3x or the NF4x or RS4x in ‘Smart Mode’. Using scanners in Smart Mode your native iOS app will connect to them with the Serial Device Manager (SDM). You only need this iOS Enter/Return Solution when using scanners in HID Keyboard Mode

RFID/NFC/Barcode Reader Modes

 Use use idChamp® family readers in different operation & connection modes depending on your needs. Choose your operation and connection mode options from the table below.

Depending on your scanner, you will have different operation and connection modes. For example you set Keyboard Wedge Mode for 5127ck-mini part using the HID setup tool. Set the Connect Mode between BLE & HID Keyboard using the yACK FAST app.

RS4x Keyboard Wedge Settings

Reader Model Reader Mode Connect Mode Connect Using
RS4x
Smart
BLE
Native App
RS4x
Keyboard Wedge
BLE
Native App
RS4x
Keyboard Wedge
HID Keyboard
OS BT App
NF4x
Smart
BLE
Native App
NF4x
Direct
BLE
Native App
NF4x
Direct
HID Keyboard
OS BT App
RS3x
Direct
BLE
Native App
RS3x
Direct
HID Keyboard
OS BT App
DX1
Direct
BLE
BLE
DX1
Direct
HID Keyboard
OS BT App

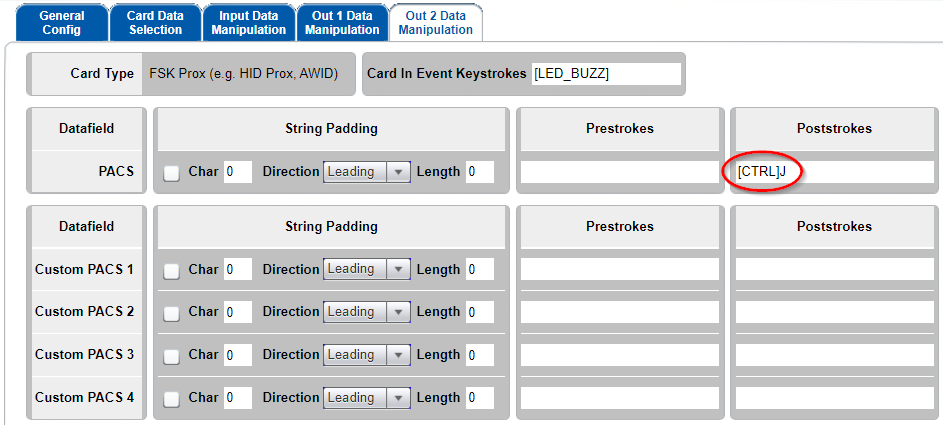

By default 5127ck-mini component of the RS4x has the “Poststrokes” set to “[ENTER]”. You’ll find this won’t work when the RS4x is in HID Keyboard Connect Mode because iOS does not support Enter/Return. You set the Poststrokes to a character your native iOS app will identify as the end of the scan data. Your app will use this character ‘as the Enter value’ to submit the data. One common value native iOS apps use to signify the end of scan data is CTRL-J. You specify this in the HID tool using “[CTRL]J” as shown below:

RS4x OMNIKEY 5x27CK mini iOS Enter Return Fails To Submit After RFID NFC Barcode Scan iOS Enter/Return Solution

Your native app can see CTRL-J as LINE FEED and use this character to identify the end of posted data to submit. This is your native app iOS Enter/Return Solution when using HID Keyboard Mode on iOS.
