Connect DX1 Pet Reader SerialMagic Windows

idChamp® DX1 Wireless Animal-Livestock-Pet 134.2kHz RFID reader works with Windows, MacOS, iOS, Android. This post shows how to connect DX1 Pet & Livestock reader to Windows using SerialMagic Professional Windows.

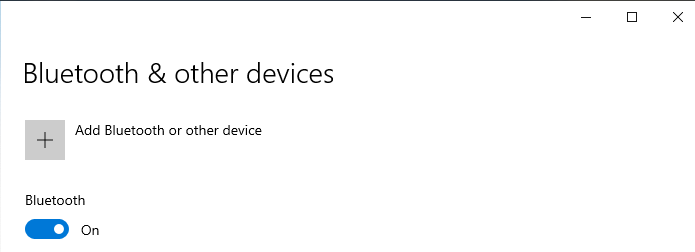

You connect the DX1 low frequency RFID reader with Windows starting in the Windows Bluetooth Settings app.

idChamp DX1x Durable SMP Setup Win10 01

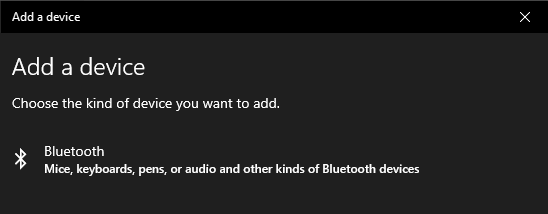

idChamp DX1x Durable SMP Setup Win10 02

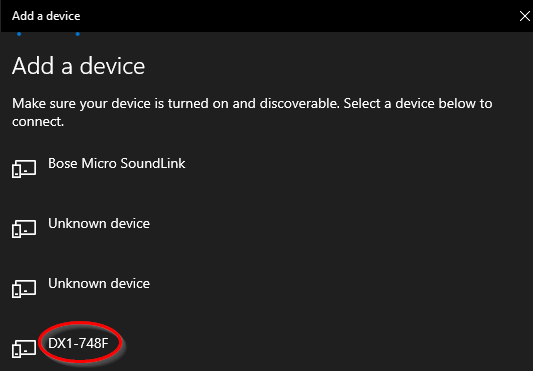

idChamp DX1x Durable SMP Setup Win10 03b

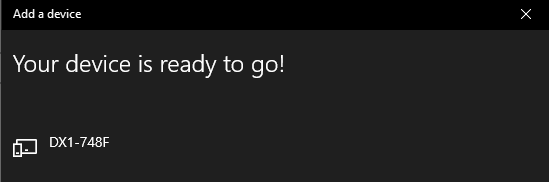

idChamp DX1x Durable SMP Setup Win10 04

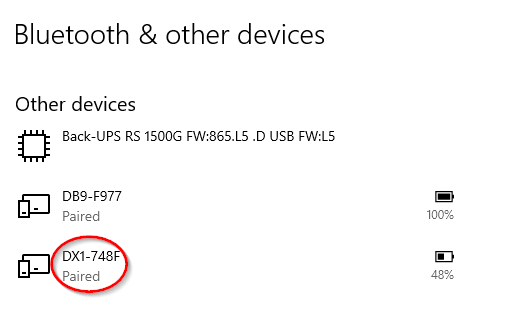

idChamp DX1x Durable SMP Setup Win10 05b

Launch SerialMagic Professional (SMP) Windows, then click Add.

idChamp DX1x Durable SMP Setup Win10 06

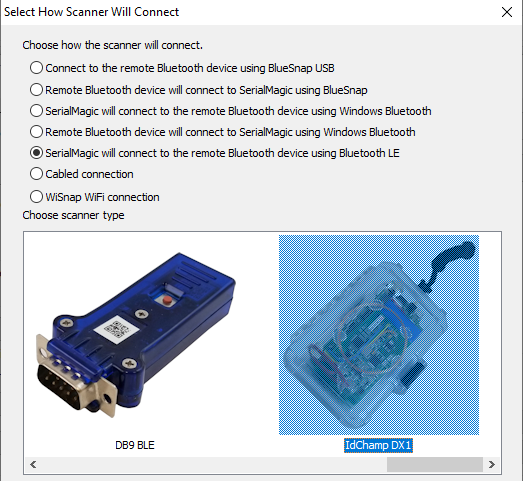

Select How Scanner Will Connect – SerialMagic will connect to the remote Bluetooth device using Bluetooth LE

idChamp DX1x Durable SMP Setup Win10 07

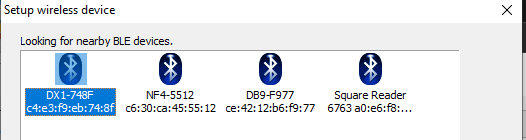

Pick the DX1 device (paired above) from the Setup wireless device dialog

idChamp DX1x Durable SMP Setup Win10 08

Pick what should happen on a scan

idChamp DX1x Durable SMP Setup Win10 09
